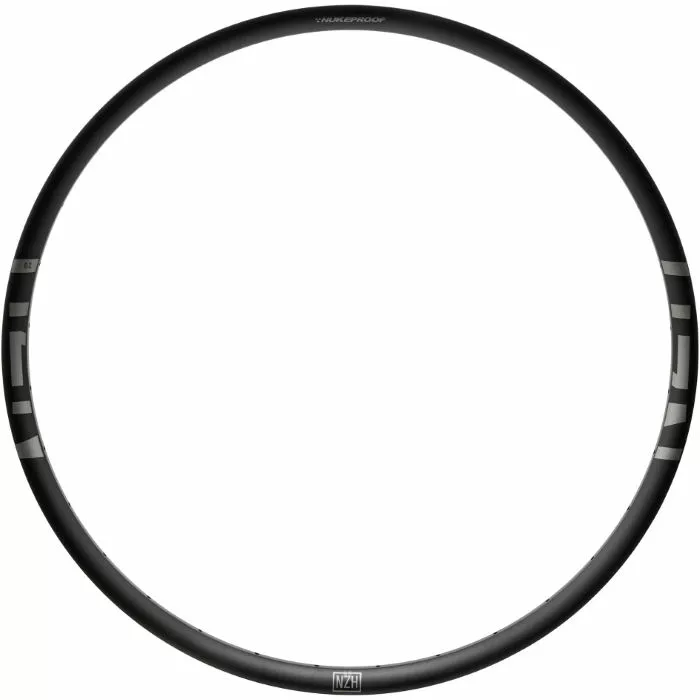

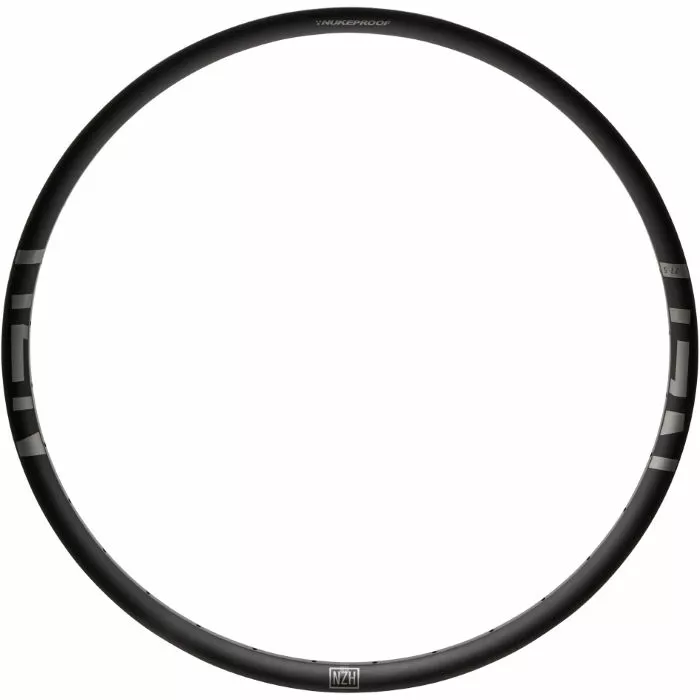

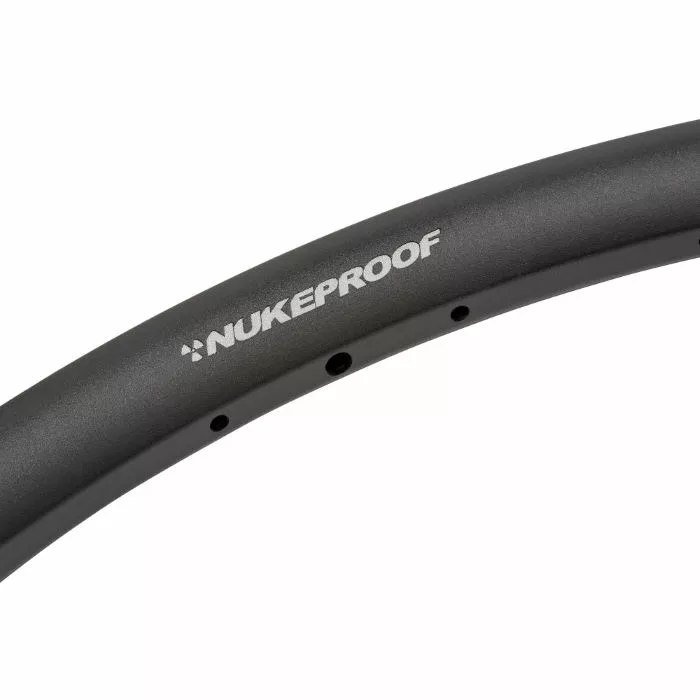

Nukeproof Horizon V2 Rim

The Nukeproof Horizon V2 Rim is engineered to meet the demands of Enduro and DH by delivering exceptional strength and durability on the toughest of MTB rides.

This MTB rim is made from a special blend of alloys, which give it a similar hardness to 7-series alloy but with the ductility and yield properties of a 6-series. This means that you will enjoy the best of both worlds as you carve your way around the mountain. Nukeproof has also equipped this model with a micro-shotpeened and anodised finish, which gives it an extra layer of resistance against wear and corrosion. As a result, you’ll benefit from being able to shred the trails in all weather conditions, without worrying about the elements ruining your gear.

Nukeproof has ensured that their front and rear rim profiles are the same but due to the rear rim being more likely to take most of the hits, they have used a thicker sidewall for added strength. The front rim has a thinner sidewall, which allows for excellent weight savings and a perfect balance between strength and weight. If you want some extra security, or if you want to save some more weight, there is no problem using a pair of front or rear rims.

Nukeproof use a sleeved rim as this allows them to have full control over the properties of the alloy. When you weld a rim it is exposed to a large amount of heat which changes the properties of the alloy in the area around the weld. This change can lead to a weak spot in the rim. Nukeproof’s tolerances are so precise, they can ensure that the alloy properties are the same throughout the whole rim.



Option                 RD                Weight

27.5″ Front         554.5           460g +/- 5%

27.5″ Rear          554.3           490g +/- 5%

29″ Front            592.5            510g +/- 5%

29″ Rear            592.3            540g +/- 5%

Topfunktioner:

• Rim Material: Alloy Nukeproof Blend; Finish: Micro shotpeened & Anodised
• Use: MTB
• Rim Inner Width: 30mm
• Rim External Width: 35mm
• Rim Height: 21.6mm
• Join: Sleeved
• Tubeless Compatible: Yes – use 33mm tape
• Drilling: 32 hole
• Brake Type: Disc only
• Valve type: Presta
